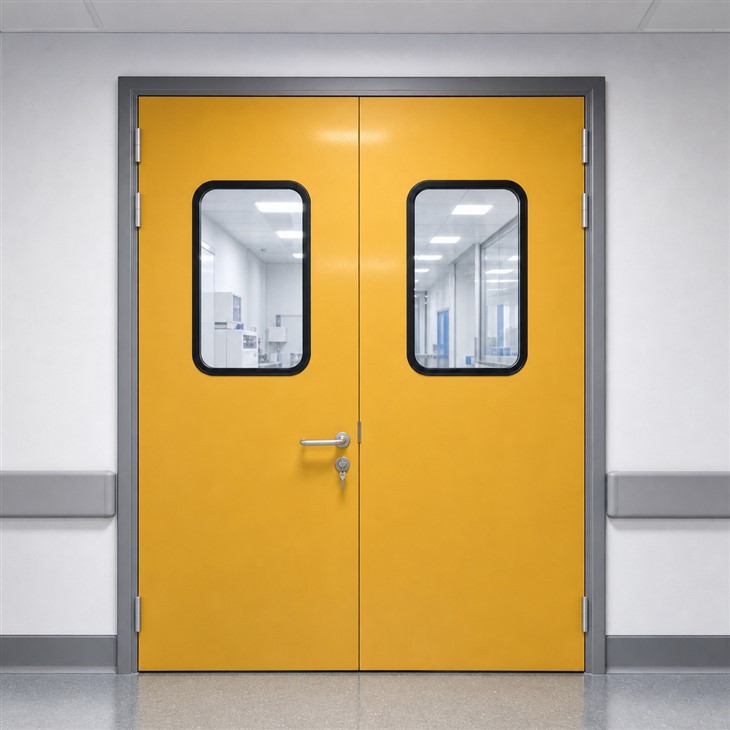

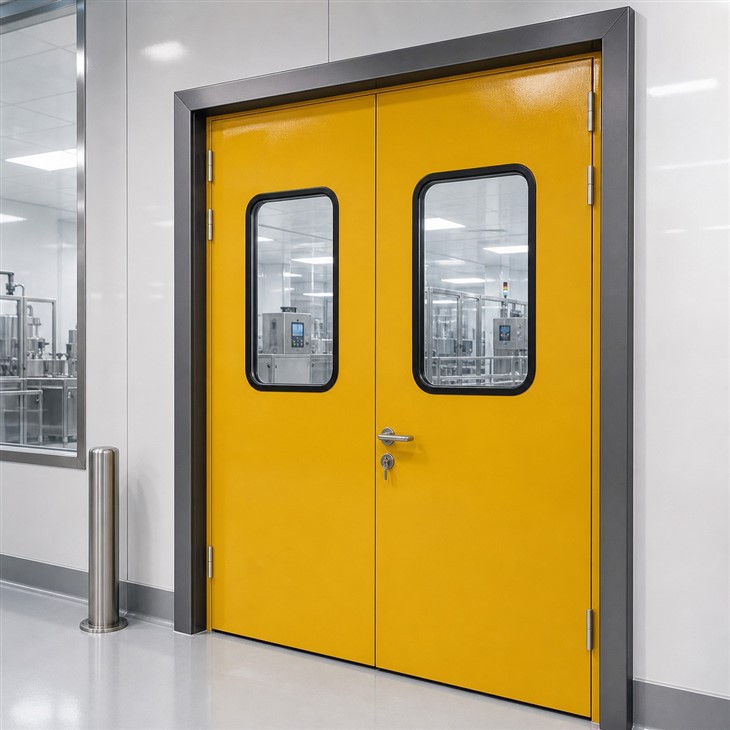

Steel Doors With Glass Windows

Shaanxi SGL Doors&Windows Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of steel doors with glass windows in China, also supports customized service. Please feel free to wholesale high quality steel doors with glass windows for sale here from our factory. If you have any enquiry about pricelist and quotation, please feel free to email us.





Steel doors don't have to be completely solid. Adding a glass window-sometimes called a vision panel-changes the door's function and appearance without compromising its structural performance.



Vision panels serve practical purposes: they admit light into a corridor or room, allow occupants to see who's at the door before opening it, and help building supervisors monitor activity through fire-rated doors without opening them. In commercial and institutional buildings, vision panels are often required by code for certain occupancy types.



Vision Panel Configurations



Glass windows in steel doors come in standard sizes and shapes, with the panel cut into the steel door leaf during manufacturing.

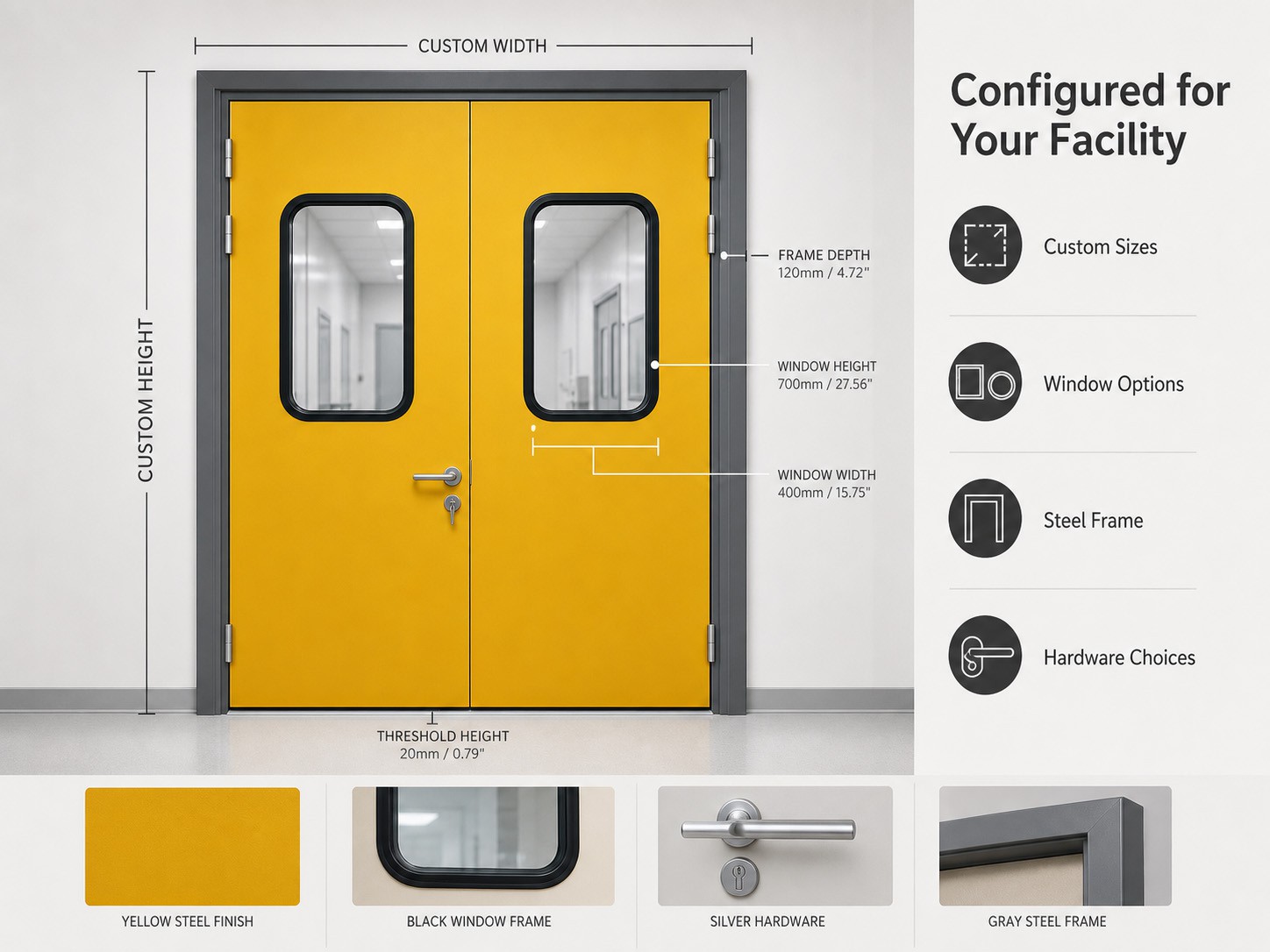

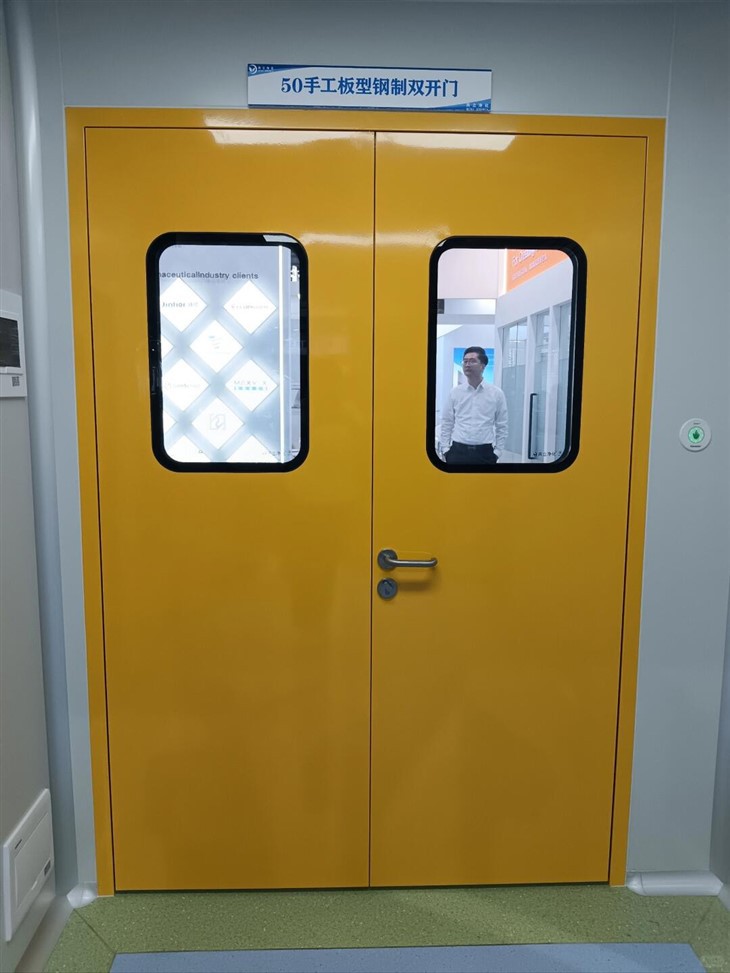

• Rectangular vision panels are the most common configuration, available in standard sizes matching industry patterns. Typical dimensions: 100×200mm (small observation), 200×300mm (standard), 300×400mm (large), 400×600mm (full upper panel). The panel is centered at eye level, typically with its bottom edge 1200–1400mm above the finished floor.
• Circular or arched panels are specified for architectural purposes, often in historic renovations or design-focused projects. Circular panels (150–300mm diameter) provide natural light without competing with the door's visual lines. Arched panels follow the profile of an arched door top.
• Full upper panel glazing extends across the entire upper section of the door leaf, with a solid lower panel. This configuration maximizes daylight transmission while maintaining security and impact resistance in the vulnerable lower area. Common in school and healthcare applications.
• Multi-panel layouts divide the glazing into multiple smaller panes, as in French door or divided-light configurations. The door leaf has a steel grid or muntin bars between the glass panes.









Glass Types for Vision Panels



Vision panels use different glass types depending on the application.



Tempered glass is the standard for vision panels in non-rated doors. It's heat-treated for impact resistance and breaks into blunt granules rather than sharp fragments. Standard thickness: 6mm for vision panels up to 400×600mm.



Laminated glass is specified where security is a concern. The PVB or SGP interlayer holds fragments together if the glass breaks. For security applications, specify 6mm+ laminated (two layers of 3mm glass bonded with interlayer). The interlayer slightly reduces visible light transmission compared to monolithic tempered glass.



Fire-rated glass is required for vision panels in fire-rated doors. Standard window glass degrades rapidly under heat and can't maintain fire integrity. Fire-rated glass options include:

• Ceramic glass: withstands thermal shock, maintains integrity under fire exposure
• Intumescent gel-filled units: the gel layer expands when heated, providing thermal insulation while maintaining transparency
• Wired glass: contains a wire mesh for stability, but is being phased out in many jurisdictions due to impact safety concerns



Privacy glass uses frosted, acid-etched, or tinted glass for applications requiring visual screening. Hospital consultation rooms, executive offices, and restroom entrances typically specify obscure vision panels.





Fire-Rated Vision Panels



Vision panels in fire-rated doors require careful specification. Not all fire-rated doors accept glass. The fire rating of the door limits the maximum vision panel size.



Fire Rating	Max Vision Panel Size (per pane)
EI 30	Up to 400×600mm
EI 60	Up to 300×400mm
EI 90	Up to 100×200mm
EI 120	Consult manufacturer



The glass must be certified as part of the door assembly. A fire-rated glass from one manufacturer installed in a door assembly from a different manufacturer is not automatically rated. We supply vision panel subframes pre-installed in our fire-rated door leaves with matching fire-rated glazing and intumescent glazing tapes.





Security Implications



Adding a vision panel creates a potential weak point in the door assembly. The glass, however well specified, is still more vulnerable than solid steel.



For security-rated doors (RC2–RC4): Vision panel size is limited by the rating requirement. RC3+ doors typically have smaller panels with laminated glass and reinforced subframes. The glass must be retained in the frame securely enough to resist the attack methods defined in the standard.



For high-security applications, we recommend minimizing vision panel size and specifying laminated glass with SGP interlayer (stiffer than PVB, better resistance to cutting tools). Alternatively, omit vision panels entirely in high-security locations.



Retrofit considerations: Adding a vision panel to an existing steel door on-site is not recommended. The cutout process can compromise the door's structural integrity and finish. If a vision panel is needed, specify it at the time of door manufacture.



Vision Panel Placement



Placement affects the door's function and appearance.



Eye-level panels (center at approximately 1500mm AFF) are standard for corridor doors in commercial and institutional buildings. They allow occupants and staff to see through the door before opening it, reducing collision risk in high-traffic areas.



High placement positions the panel above 1800mm AFF, admitting light while maintaining privacy. Common in office meeting room doors, hotel suite entrances, and healthcare consultation areas.



Low placement (panel bottom below 900mm AFF) can be useful in school and childcare settings, where adults need to see children from standing height. Low panels may have different safety requirements.

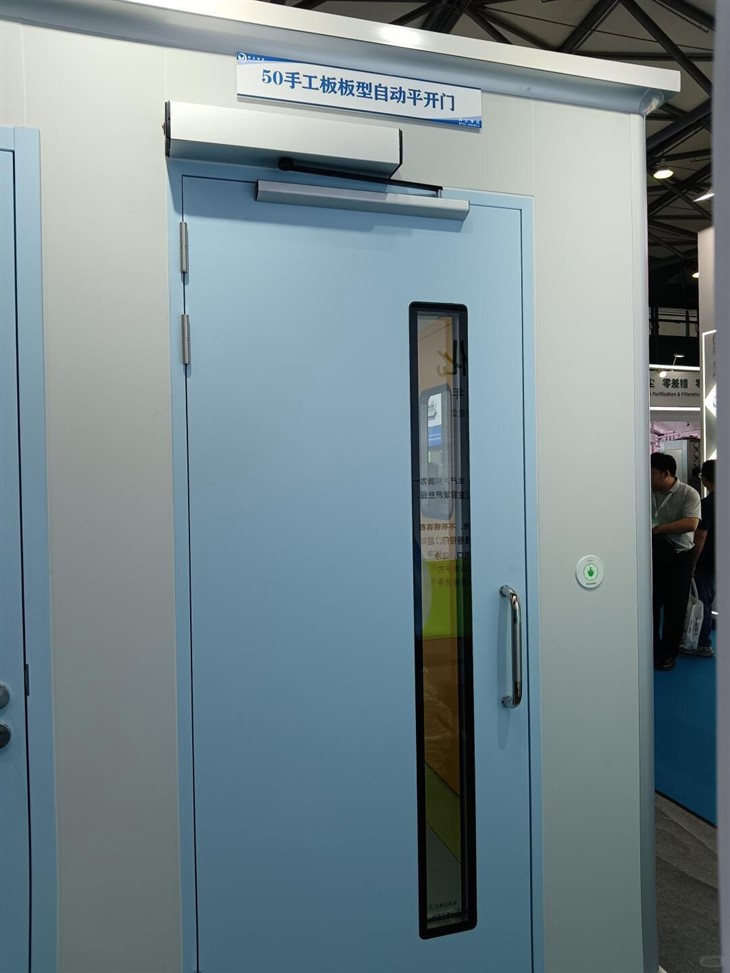

Full-height vision strips run the height of the door as a narrow glass panel, typically 100–150mm wide. They provide an elegant appearance common in modern architectural doors while maintaining structural performance in the wider solid section of the door leaf.





Applications by Building Type



Healthcare

Vision panels in hospital patient room doors allow staff to check on patients before entering, while maintaining privacy from the corridor. Typical configuration: 100×300mm panel with obscure glass, placed at staff eye level. Fire-rated where required by code. Privacy glass is standard.



Education

School and university classroom doors require vision panels for corridor safety monitoring. Many building codes mandate vision panels in classroom doors. Typical configuration: 200×300mm tempered or laminated glass, rectangular, centered in the upper half of the door.



Commercial Office

Conference room and private office doors often have vision panels to indicate occupancy and reduce collision risk. Typical configuration: 300×400mm clear glass, fire-rated if the door is part of a fire compartment. Frosted glass for executive privacy.



Hospitality

Hotel guest room doors may have vision panels for safety-allowing guests to verify visitors without opening the door. Typical configuration: small circular panel (150mm diameter) with privacy glass, placed at occupant eye level from the interior.



Fire corridor doors

Stairwell and exit corridor fire doors may require vision panels per local codes. The panel allows fire wardens and emergency responders to assess conditions on the other side before opening the door.



Subframe and Glazing Details

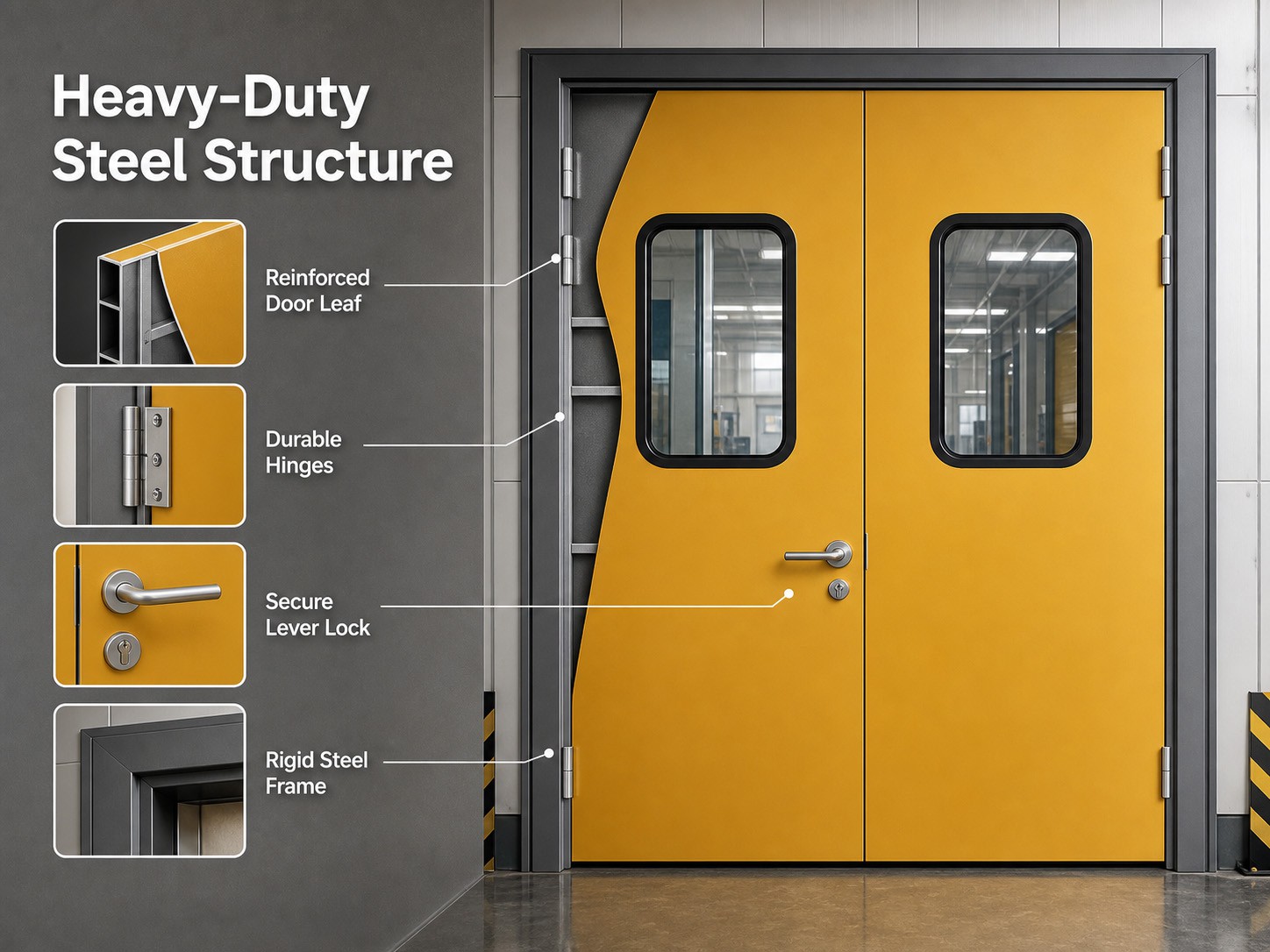

Vision panels in steel doors require a subframe to support the glass and maintain door integrity.



Welded steel subframes are installed during door manufacture, before the door skins are assembled. The subframe creates a rigid perimeter for the glass, distributing the load into the surrounding door structure. This is the standard method for all built-in vision panels.



Clip-in frames are post-installed into a factory-prepared cutout in the door leaf. The preparation is done at the factory before finishing. Clip-in frames allow for field glass replacement without special tools.



Care and maintenance. The glazing gaskets compress over time. Replace gaskets when they show signs of hardening or cracking. Clean glass with non-abrasive cleaners. For fire-rated doors, do not remove vision panel gaskets-they are part of the rated assembly.



Project Example: School District Modernization



A school district project in Kazakhstan specified steel doors with vision panels for 240 classroom doors across four buildings. Requirements: EI 60 fire rating, 200×300mm vision panels, laminated glass for security, and finishes matching the school's interior design.



Solution:

• 1.0mm galvanized steel skins, mineral wool core
• Factory-installed welded subframes for vision panels
• 6+6mm fire-rated laminated glass with intumescent seals
• RAL 9010 white finish
• Vision panels centered at 1450mm AFF



All doors were delivered prehung with frames and hardware. The school district's facilities team appreciated the uniform vision panel placement-previous replacements had inconsistent heights.
