How Airtight Are Slim Aluminium Windows? EN 12207 Ratings, Testing Methods & Performance Data
When architects specify slim aluminium windows for residential and commercial projects, one question surfaces more than any other: how airtight are they, really? It is a fair concern. Narrow sightlines and minimalist profiles look striking, but if air seeps through the frame joints or sash interfaces, the energy savings and occupant comfort that motivated the specification evaporate quickly.
This article breaks down the airtightness of slim aluminium windows using the standards and test methods that matter - EN 12207 classification, EN 1026 test procedures, and Part L compliance thresholds - so you can evaluate performance on objective data rather than marketing claims.
Why Airtightness Matters for Aluminium Windows
Airtightness measures how effectively a window resists unwanted air infiltration when closed. It is distinct from weather tightness (resistance to driven rain) and thermal transmittance (U-value), although all three interact. A window that leaks air undermines even the best thermal break and glazing specification, because the warm internal air the heating system has paid for escapes through gaps around the sash and frame.
The practical consequences fall into four categories:
| Impact Area | What Happens When Airtightness Is Poor | Typical Quantifiable Effect |
|---|---|---|
| Energy consumption | Heated or cooled air escapes; HVAC runs longer | Up to 30% of space-heating energy lost via infiltration (BRE, 2023) |
| Thermal comfort | Cold draughts near window reveals | Occupants perceive a 1-2°C lower temperature near leaky windows |
| Acoustic performance | Sound travels through air paths | A 5 dB reduction in sound insulation for each leakage path |
| Moisture and condensation | Warm moist air meets cold surfaces at leakage points | Interstitial condensation risk in wall-to-frame junctions |
For projects targeting energy-efficient aluminium windows, the airtightness class of the window unit is as important as the U-value of the glazing.
EN 12207: The European Standard for Window Air Permeability
EN 12207:2016 - Windows and doors - Air permeability - Classification is the primary European standard used to grade window airtightness. It classifies complete window assemblies (frame, sash, gaskets, hardware - the lot) into five classes based on the volume of air passing through the window per hour per metre of opening joint, at a reference pressure of 100 Pa.
EN 12207 Classification Table
| Class | Air Permeability at 100 Pa (m³/h per m of joint) | Typical Window Type | Approximate Equivalent Air Changes per Hour (ACH) |
|---|---|---|---|
| Class 0 | Not tested / no requirement | Basic single-glazed, untested units | > 5.0 |
| Class 1 | ≤ 13.5 | Standard residential, basic gasket | 3.0 – 5.0 |
| Class 2 | ≤ 7.5 | Mid-range residential with double sealing | 1.5 – 3.0 |
| Class 3 | ≤ 3.75 | High-performance residential, triple gasket | 0.8 – 1.5 |
| Class 4 | ≤ 1.5 | Passivhaus-certified, premium commercial | < 0.6 |
Data sourced from BS EN 12207:2016, Table 1 - Classification of air permeability.
The key takeaway: Class 3 and Class 4 represent genuinely airtight windows. Anything below Class 2 will produce noticeable draughts and may not comply with current UK Building Regulations for new-build work.
How the Test Works: EN 1026
The corresponding test method is EN 1026: Determination of air permeability. The window is mounted in a test chamber, and a fan creates a pressure differential across the specimen. Airflow through the window is measured at multiple pressure steps (typically 50, 100, 150, 200, 300, 500, and 600 Pa). The results are plotted as air permeability versus pressure, and the value at 100 Pa determines the classification.
For specifiers, it is worth requesting the full EN 1026 test report rather than simply the class rating. Two windows both rated Class 3 can have materially different air leakage profiles at higher pressures - relevant for exposed or high-rise installations.
Factors That Determine Airtightness in Slim Aluminium Windows
1. Frame Profile Design and Corner Joints
Slim aluminium profiles have less material to work with than standard or heavy commercial sections, so every detail of the joint design matters. The two critical areas are:
- Corner joints: Mitred corners must be either mechanically crimped with sealant injection or CNC-machined to tolerances below 0.1 mm. Any gap at the corner is a direct air path.
- Mullion/transom interfaces: Where horizontal and vertical frame members intersect, interlocking profiles with integrated gasket channels prevent the leakage that occurs in simple butt-jointed designs.
Modern thermal break aluminium windows use polyamide (PA66-GF25) thermal break strips that also serve as a secondary air barrier within the profile itself - the break strip fills the gap between inner and outer aluminium shells that would otherwise be an open channel.
2. Sealing Gasket Systems
The gasket system is the single most important component for airtightness. Premium slim aluminium windows use a dual-seal (or triple-seal) gasket configuration:
| Gasket Position | Material | Function |
|---|---|---|
| Outer seal (weather gasket) | EPDM or TPE | Blocks rain and external air; compresses against sash |
| Inner seal (air gasket) | EPDM or silicone | Primary air barrier; maintains seal at low pressure differentials |
| Centre seal (triple-seal systems) | EPDM | Additional barrier for Class 3-4 performance; locks the pressure chamber |
EPDM (ethylene propylene diene monomer) is the industry standard because it retains elasticity from -40°C to +120°C, resists UV degradation, and does not permanently compress (compression set < 15% after 10,000 cycles). Cheaper TPE gaskets can harden within 5-7 years in high-UV exposures, causing the airtightness class to drop by one or two grades over the window's service life.
3. Glazing Bead and Glass-to-Frame Seal
In slim profiles, the glass bead is often the narrowest component - sometimes as thin as 18-22 mm. The glazing must be set on load-bearing setting blocks, with back-bedded sealant (typically a neutral-cure silicone) creating a continuous seal between the glass edge and the frame rebate. Any discontinuity in this seal creates a bypass route for air around the gasket system.
For triple-glazed aluminium windows, the thicker glass unit (36-48 mm) actually aids airtightness because the deeper rebate engagement provides more contact surface for the glazing gasket and back-bedded sealant.

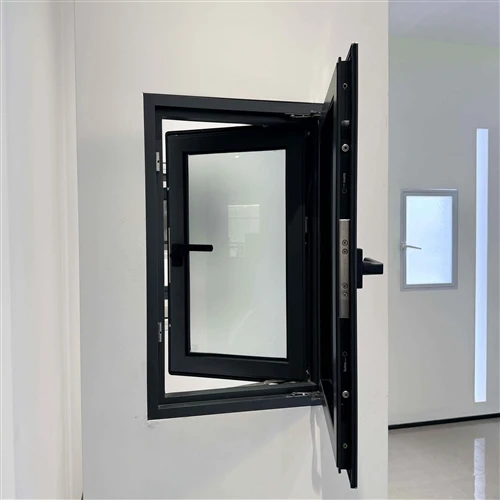

4. Hardware and Locking Mechanism
The hardware determines how tightly the sash is pulled into the frame when closed. Key considerations:
- Mushroom-headed espagnolette bolts with matching keeps provide a consistent clamping force around the full perimeter of the sash. This is the standard for Class 3-4 windows.
- Multi-point locking (typically 3-5 points on a standard casement) ensures even compression of the gasket system. A single-point lock at the handle may leave the top and bottom corners under-compressed.
- Aluminium tilt-and-turn windows achieve excellent airtightness specifically because their perimeter locking mechanism pulls the sash uniformly against all gaskets simultaneously - unlike a side-hung casement where hinge-side compression can be uneven.
5. Thermal Break Design and Airtightness
The thermal break (polyamide strip) in a thermally broken aluminium profile serves a dual purpose. Its primary role is to interrupt the conductive heat path through the aluminium, but it also creates an internal air barrier. In well-designed profiles, the PA66 strip is profiled with interlocking features that make it virtually airtight within the cross-section. This is why thermally broken aluminium casement windows consistently achieve Class 3 or Class 4 ratings, while non-thermal-break ("hard-edge") profiles are typically limited to Class 1 or Class 2.
Part L Compliance and Airtightness Requirements
In England, Approved Document Part L (Conservation of Fuel and Power) sets the framework for building envelope airtightness. The 2022 edition (Part L 2021, effective from June 2022) introduced significant changes:
| Requirement | Part L 2021 (Current) | Part L 2013 (Previous) |
|---|---|---|
| Target air permeability (new dwellings) | ≤ 5.0 m³/(h·m²) at 50 Pa | ≤ 7.0 m³/(h·m²) at 50 Pa |
| Best practice (Fabric Energy Efficiency) | ≤ 3.0 m³/(h·m²) at 50 Pa | ≤ 5.0 m³/(h·m²) at 50 Pa |
| Mandatory air pressure test | Yes - every dwelling type tested | Sampling permitted |
The building air permeability figure (measured by a blower door test of the whole dwelling) includes contributions from all components - walls, roof, floor, service penetrations, and windows. Windows specified at EN 12207 Class 3 or above will contribute minimal air leakage to the overall building figure, giving the design team more flexibility elsewhere.
For projects targeting whole-house window systems, specifying all windows at Class 3 or above simplifies Part L compliance because the window package is no longer a significant source of air leakage.
Passivhaus and Airtightness: The Gold Standard
The Passivhaus standard requires a building air permeability of ≤ 0.6 ACH (air changes per hour) at 50 Pa, which is roughly equivalent to ≤ 0.47 m³/(h·m²) at 50 Pa. This is roughly 10 times more airtight than the Part L target for new dwellings.
Achieving this level demands:
- EN 12207 Class 4 windows - the window units themselves must be at the top of the classification scale.
- Airtightness tapes and membranes at every window-to-wall junction. The window frame itself may be Class 4, but if the perimeter gap is sealed with standard expanding foam rather than proprietary airtightness tape, the overall installation will not meet the Passivhaus target.
- Service penetrations eliminated from the window zone - no trickle vents, no cable entries through the frame.
Passive house window systems using aluminium profiles are now available with certified EN 12207 Class 4 ratings and whole-window U-values as low as 0.72 W/(m²·K), demonstrating that slim aluminium profiles can meet even the most demanding airtightness standard when engineered correctly.
The Challenge of Slim Profiles: Sightline vs. Seal Area
There is an inherent engineering tension in slim aluminium windows: the narrower the sightline, the less physical space exists for gasket channels, and the shorter the seal contact length between sash and frame. A window with a 47 mm frame depth simply has less gasket engagement than one with a 70 mm depth.
This does not mean slim windows cannot be airtight - but it means the engineering must be more precise:
- Tighter manufacturing tolerances: ±0.15 mm on profile extrusions versus ±0.3 mm for standard profiles.
- Higher-performance gasket compounds: Low-compression-set EPDM with optimised durometer (Shore A 55-65) to maintain seal pressure with less engagement area.
- Optimised hardware geometry: Flush-fitting espagnolette bolts that apply even pressure across the full gasket length.
The ultra-slim aluminium windows now available from leading systems companies achieve EN 12207 Class 3 with sightlines as narrow as 35 mm, proving that airtightness and aesthetics are not mutually exclusive - but only when the specification demands the data.
Comparing Material Performance: Aluminium vs. Timber vs. uPVC
When comparing airtightness across window materials, it is important to distinguish between the inherent material properties and the system design. Aluminium itself is dimensionally stable - it does not warp, swell, or shrink with changes in humidity, which means the gasket compression set remains constant over decades. Timber, by contrast, can shrink in dry conditions (reducing gasket compression) or swell in wet conditions (potentially forcing the sash away from the frame). uPVC is dimensionally stable within normal temperature ranges but can expand significantly in direct sunlight (coefficient of thermal expansion approximately 7× that of aluminium), which may reduce gasket contact at high temperatures.
| Material | Dimensional Stability | Typical EN 12207 Class Range | Long-Term Airtightness Trend |
|---|---|---|---|
| Aluminium (thermal break) | Excellent - no hygroscopic movement | Class 2 – Class 4 | Stable over 25+ years |
| Timber | Variable - hygroscopic swelling/shrinkage | Class 2 – Class 4 (new) | May degrade 1 class over 10-15 years without maintenance |
| uPVC | Good at 20°C; expansion at extremes | Class 2 – Class 3 | Generally stable; hinge adjustment may be needed after 10+ years |
Aluminium-clad windows combine the dimensional stability of an aluminium exterior with the thermal mass of a timber interior, and their airtightness performance reflects the precision of the aluminium outer frame - typically Class 3 or above.
How to Maintain Airtightness Over the Window's Lifetime
Even the best Class 4 window will degrade if the gaskets are damaged or the hardware goes out of adjustment. Practical maintenance steps include:
- Annual gasket inspection: Check for hardening, cracking, or permanent compression, particularly on south-facing windows with high UV exposure. Replace any gasket section that has lost resilience.
- Hardware adjustment: Espagnolette bolts and hinge pins can work loose over 5-10 years of daily use. A 2 mm adjustment to the lock keeps can restore full gasket compression.
- Perimeter seal check: The sealant between the window frame and the structural opening should remain continuous. Any cracking or shrinkage in the sealant creates a bypass around the window unit itself.
- Avoid retrofit trickle vents: Cutting trickle vents into existing window frames breaks the gasket line and typically drops a Class 3 window to Class 1 or below. If background ventilation is required, use purpose-designed ventilators integrated into the frame head during manufacture.
FAQ
Q: What EN 12207 Class Should I Specify For A New-Build House?
A: For compliance with current Part L (2021) in England, specify a minimum of EN 12207 Class 3 for all windows in habitable rooms. If the project is targeting Passivhaus certification or a near-zero energy standard, Class 4 is necessary.
Q: Can Slim Aluminium Windows Really Achieve Class 4 Airtightness?
A: Yes - but only from systems companies that have invested in precision extrusion, triple-gasket configurations, and multi-point perimeter locking. Not every slim system achieves Class 4; some are limited to Class 2. Always request the EN 1026 test report for the specific configuration you are specifying.
Q: What Is The Difference Between Airtightness And Weather Tightness?
A: Airtightness (EN 12207) measures resistance to air infiltration under pressure. Weather tightness (EN 12208) measures resistance to water penetration under driven-rain conditions. A window can be weathertight but not particularly airtight - for example, a window with effective drainage channels but minimal gasket compression. Both standards should be considered together.
Q: Does A Thermal Break Improve Airtightness?
A: Indirectly, yes. The polyamide thermal break strip fills the internal cavity between the inner and outer aluminium shells, eliminating a potential air path through the profile cross-section. Additionally, thermally broken profiles tend to be deeper, providing more space for dual or triple gasket channels.
Q: How Often Should Window Airtightness Be Tested?
A: There is no regulatory requirement for retesting window airtightness after installation. However, if you notice draughts, condensation between panes, or increased heating bills, a blower door test of the whole dwelling (per ATTMA TSL1) can identify whether the windows are the source of excess air leakage.
Q: Do Aluminium Windows Lose Airtightness Over Time?
A: Aluminium frames do not warp or swell, so the structural geometry remains constant. The primary degradation mechanism is gasket ageing - EPDM typically maintains its properties for 15-20 years in UK conditions before hardening reduces seal effectiveness. Hardware adjustment every 5-10 years and gasket replacement at the 15-20 year mark will maintain the original airtightness class.
Conclusion
Slim aluminium windows can achieve excellent airtightness - EN 12207 Class 3 and even Class 4 - when the system is engineered with precision gaskets, multi-point locking, and thermally broken profiles. The critical step for specifiers is to demand the data: the EN 1026 test report, the EN 12207 classification certificate, and the declaration of performance. Without these documents, any claim about airtightness is just that - a claim.
For projects where energy performance, acoustic comfort, or moisture control matter, specifying windows with verified airtightness ratings is not an optional extra. It is a fundamental part of the building envelope design.
